Lugar de origen: | Jiangxi, China |
---|---|
Nombre de la marca: | BlueRay |
Certificación: | CE ISO |
Número de modelo: | DCS-50L |
Cantidad de orden mínima: | 1 sistema/sistema |
Precio: | $5,000.00 - $10,000.00 / Set |
Detalles de empaquetado: | 1, cada empaquetadora será embalado en un caso de madera grande, entonces en el envase 2, necesid |
Capacidad de la fuente: | 100 sistemas/sistemas por Empaquetadora agra del uso del arroz del mes |
Uso: | granular tamaño pequeño o polvo con el buenos flujo, sustancia química, materia, comida, maquinaria | Tipo de empaquetado: | bolsos abiertos de la boca, bolsos |
---|---|---|---|
Dimensión (l*w*h): | 3000*1100*3200m m | Nombre de producto: | 2017 nuevos 5kg autos a la empaquetadora agra del uso del arroz 50kg |
Célula de carga tres: | alta exactitud de pesaje | Cilindro que viaja tres: | velocidad de alimentación con rápido-midium-lento |
Caja de control: | el panel lleno de la pantalla táctil | Abrazadera automática del bolso: | Control de sensor |
Sistema del PLC: | Funcionamiento fácil | Material de embalaje: | polvo granular o bueno del flujo |
máquina de coser: | Automático lleno | Servicio del OEM: | 15 años de experiencia del R&D |
Garantía de la calidad: | un año | Peso: | 1500KG |
Servicio post-venta proporcionado: | Dirige disponible para mantener la maquinaria en ultramar | Poder: | 3KW |
Condición: | Nuevo | Material de empaquetado: | Madera, empaquetadora agra del uso del arroz en caso de madera |
Tipo conducido: | Neumático | Voltaje: | 220v/380v/50hz |
Grado automático: | semiautomático | Tipo: | Otro |
Puerto: | Shangai o cualquier puerto en China |

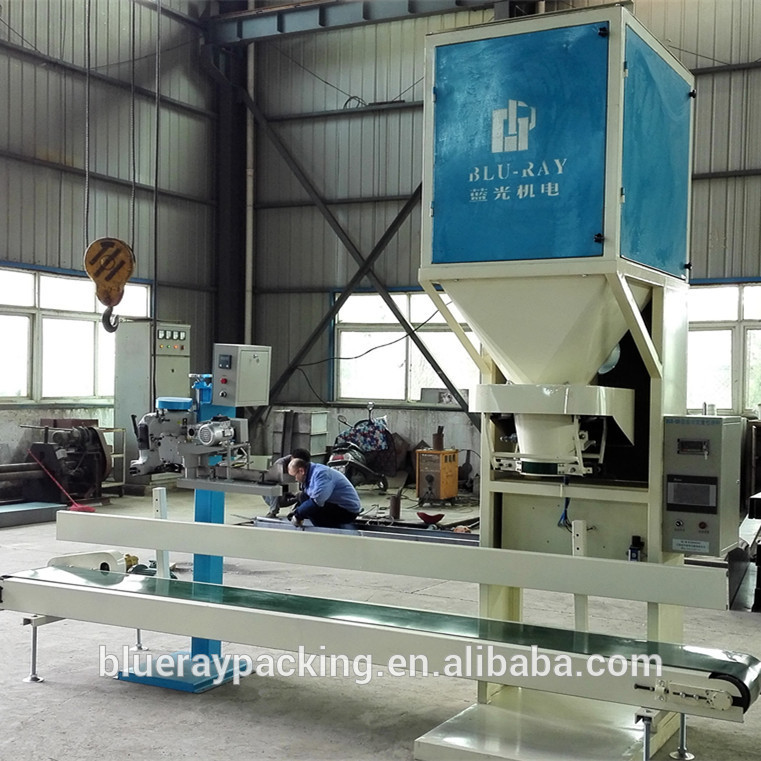

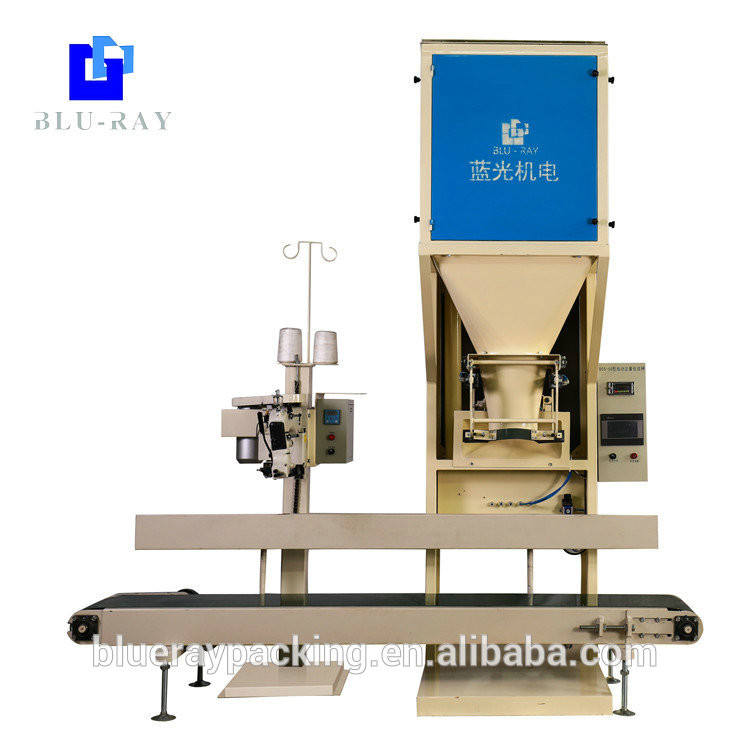

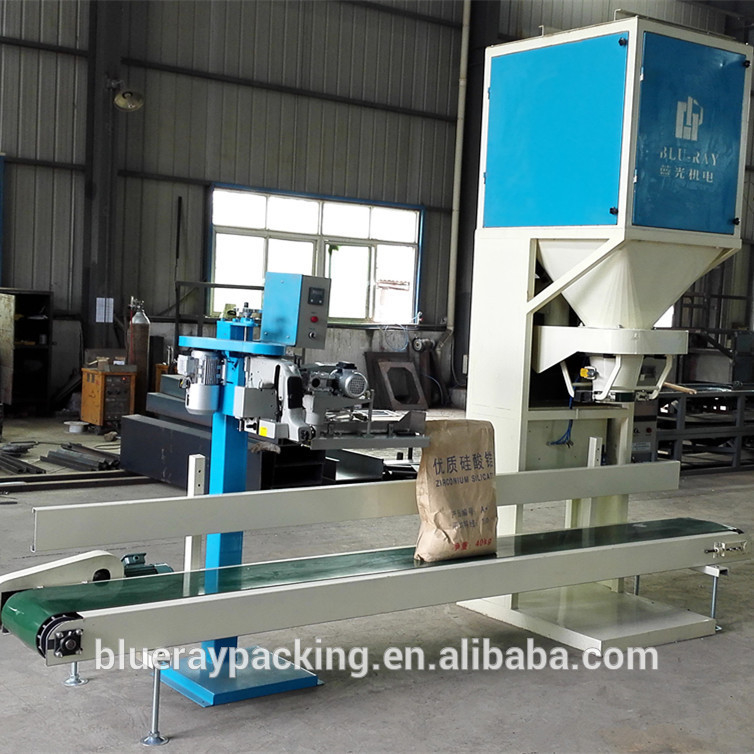

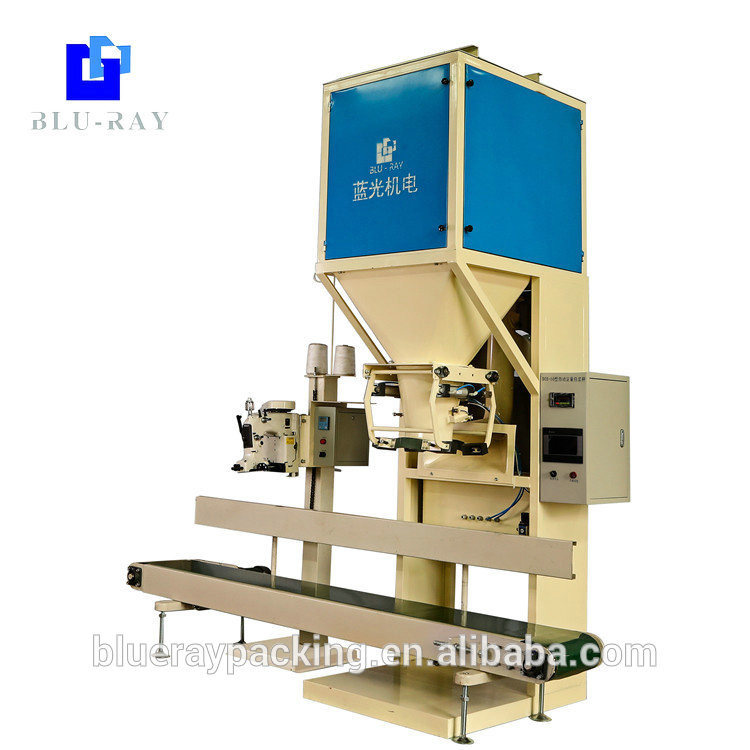

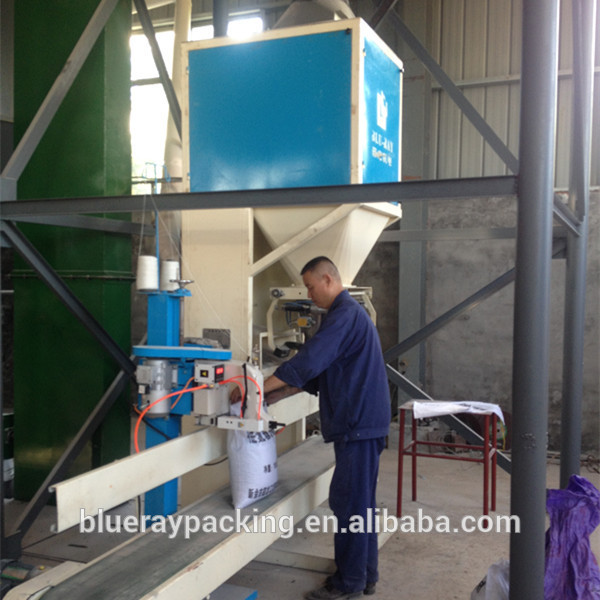

1, Product Name: 2018 new auto 5kg to 50kg rice agro application packing machine
2, Item: DCS-50L
Application materials | small size granular or powder with good flow | ||
Display Resolution | 5g, 10g | ||
Weighing Range | 5-50kg/bag or customized needs | ||
Precisions | +/-(0.1-0.2)% FS | ||
Packing Capacity | 360-480 bags/hour | ||
Dimention(L*W*Hmm) | 3000*1100*3200mm, the size can be customized according to your site | ||
Power Supply | AC220V/380V, 50HZ, 1P/3P, customized available | ||
Air Source | 0.5-0.7 Mpa | ||
Power | 3KW | ||
Working Temperature | -10~40 ℃ | ||
Relative Humidity | ≤90% RH(Non-condesing) |
Gravity feeding type packing machine suit for pack small size granular or powder with good flow, such as plastic particles, feed, fertilizer( urea etc), grain, sugar, bean, rice etc.
This bagging machine is especially designed for pack materials(products) into open mouth bags, such as plastic woven bags, kraft bags,paper-plastic compound bags, sacks, barrel etc
Automatic filling - automatic weighing - manually bag placing - automatic bag clamped - materials automatic discharge - automatic bag loose - automatic conveying - automatic bag closed by sewing/heat sealing
+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available
+Famous brand load cell, more stable
+Installed 3pieces load cell, high weighing accuracy
+Control by the PLC system and three-travelling
air cylinder, feeding speed with fast-midium-slow
+Photoelectric sensor switch
+Big force 2pcs air cylinder control
+Automatic bag clamp and loose
+Automatic materials dischage
+Suit for different bag size
+All of our packing machine will install air outlet
+Connect your dust removal device, making the
working environment more hygienic
+Add our pulse dust collector,
dust collection≥99.8%
+Automatic bag top folding device(opitional)
+Photoelectric sensor switch
+Automatic knife thread cut
+Single needle double thread chain
+Production data record & print
+Thread end length ajustable
+Bag sewing heigth adjustable
+With automatic bag conveyor
